Description

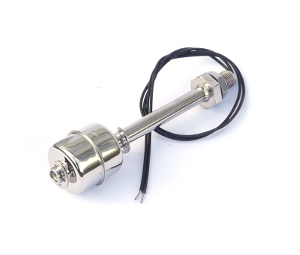

Long Vertical Float Switch with Cable.
| Model | 503 |
| Interface Area | horizontal (± 30°) |
| Fluid density | ≥ 0.7 kg / dm3 |
| Operating temperature | -20…120° |
| The maximum pressure | 10 bar |
| Maximum voltage | 200 V ∼ |
| Maximum power ≤ 20 V | 0.5 A |
| Float size | ∅ 28×28 mm |
| Thread | G1 /8″ |
| The sensor material | AISI316 |
| Cable | 1 m |
