The lower Limit pressure switch RT116

Description

RT pressure switches are used in industry and the marine sector.
A broad program of one-pole switching RT pressure switches for alarm, surveillance, with neutral zone, pressure switches with gold plated contacts for low currents, security guards for steam plants.
RT pressure switches have been on the market for over 60 years .

  • Pressure Areas within: -1 to 30 bar
  • Replaceable contact system
  • Also available with gold plated contact systems
  • Intrinsically-safe versions
  • Adjustable difference
  • Degree of protection IP66
  • Available with mine. and max. reset (IP54)
  • Also available as differential pressure switch
  • Versions with TÜV approvals and with neutral
  • Have all relevant marine approvals

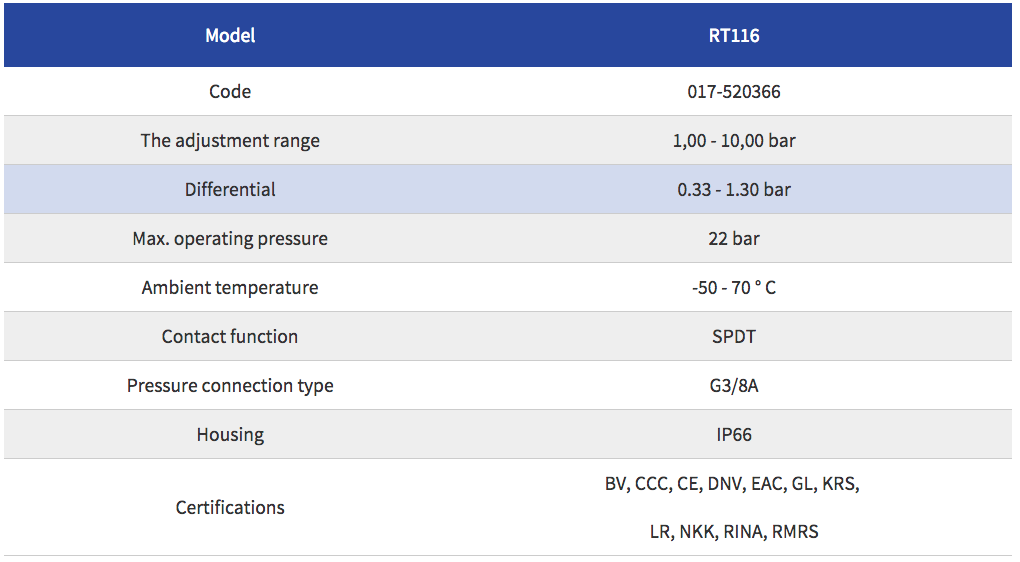

Model RT116
Code 017-520366
The adjustment rage 1.00-10.00 bar
Differential 0.33-1.30 bar
Max. operating pressure 22 bar
Ambient temperature -50-70° C
 Contact function SPDT
 Pressure connection type G3/8A
 Housing IP66
 Certifications BV, CCC, CE, DNV, EAC, GL, KRS, LR, NKK, RINA, RMRS
