Description
Danfoss KPI pressure switches are used for regulation, control and alarm industry.
CPI series is suitable for liquids and compressed air and other gaseous media. They work with a pole changeover contacts (SPDT).
- Compact design
- Ideal for panel mounting
- Vibration proof
- Long operation life
- High contact load
- Ultra short bounce times
- High pulsation protection
- CE marked in accordance to EN 60947-4/-5

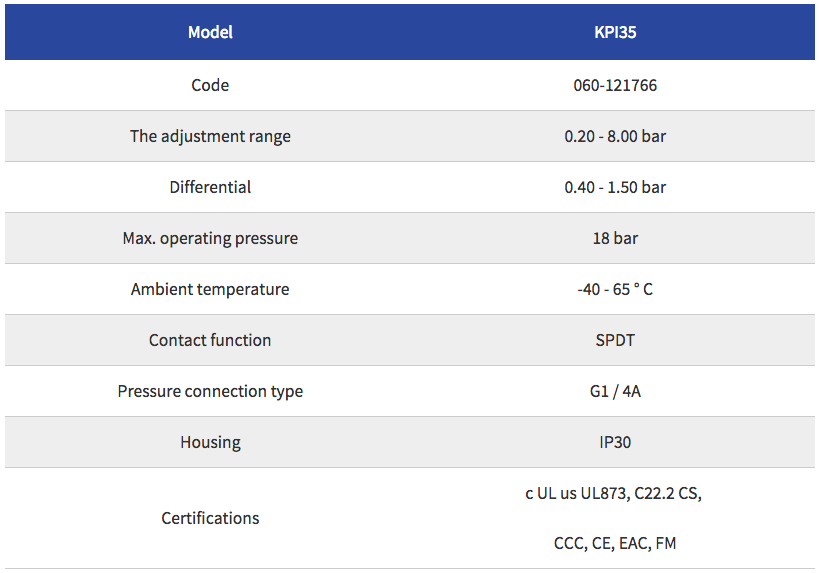

| Model | KPI35 |
| Code | 060-121766 |
| The adjustment range | 0.20-8.00 bar |
| Differential | 0.40-1.50 bar |
| Max. operating pressure | 18 bar |
| Ambient temperature | -40-65° C |
| Contact function | SPDT |
| Pressure connection type | G1 / 4A |
| Housing | IP30 |
| Certifications | c UL us UL873, C22.2 CS, CCC, CE, EAC, FM |
