Description
Grooved endcaps provide an economical and efficient method of capping grooved piping systems.
Sizes
Available sizes are DN25-DN250.
Operating pressure
21 bar. Note! Nordic Flow thin wall pipes with the maximum permissible pressure class PN16.
Material Specification
Body: Cast iron ASTM A536 65-45-12
Finish: Red paint RAL 3000 or galvanized (Dacromet)

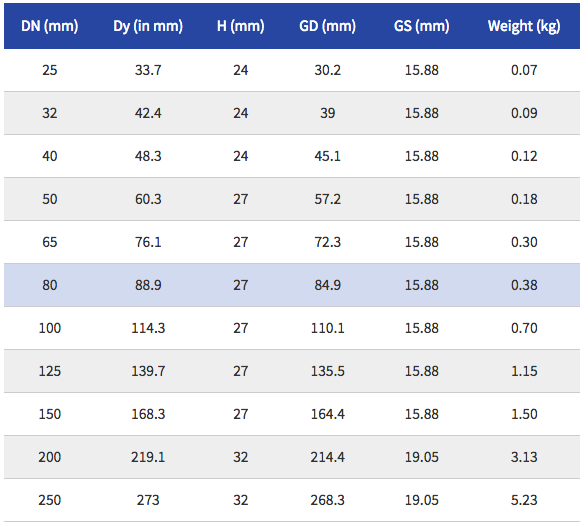

Specification:
| DN | Dy (in mm) | H (mm) | GD (mm) | GS (mm) | Weight (kg) |
| 25 | 33.7 | 24 | 30.2 | 15.88 | 0.07 |
| 32 | 42.4 | 24 | 39 | 15.88 | 0.09 |
| 40 | 48.3 | 24 | 45.1 | 15.88 | 0.12 |
| 50 | 60.3 | 27 | 57.2 | 15.88 | 0.18 |
| 65 | 76.1 | 27 | 72.3 | 15.88 | 0.30 |
| 80 | 88.9 | 27 | 84.9 | 15.88 | 0.38 |
| 100 | 114.3 | 27 | 110.1 | 15.88 | 0.70 |
| 125 | 139.7 | 27 | 135.5 | 15.88 | 1.15 |
| 150 | 168.3 | 27 | 164.4 | 15.88 | 1.50 |
| 200 | 219.1 | 32 | 214.4 | 19.05 | 3.13 |
| 250 | 273 | 32 | 268.3 | 19.05 | 5.23 |
