Limit Switch


  • Compact IP 65 switch for safety applications
  • Optimised size while retaining tried-and-tested connection system
  • Two-channel safety monitoring possible
  • With captive snap-on cover
  • 2 mm contact opening width of slow-action system conforming to EN 81-1 for lift construction
  • Mall hysteresis in snap action system
  • Actuator can be repositioned by 4 x 90°

Recommended use

Ideal for safety applications and position monitoring in confined spaces with high protection class IP 65.

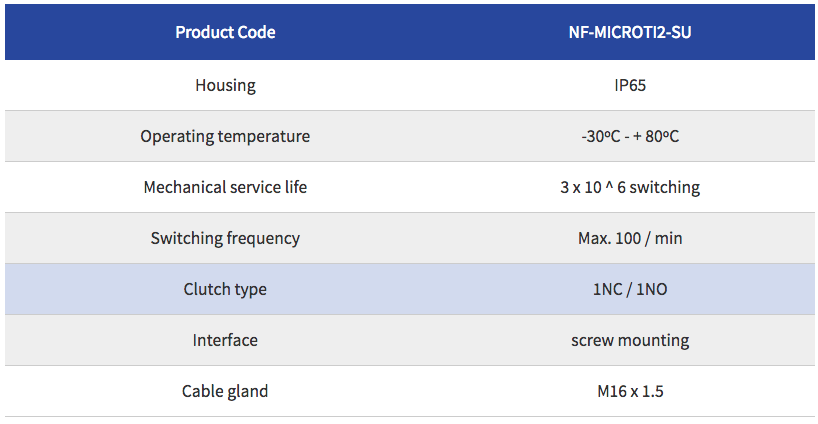

Product Code NF-MICROTI2-SU
Housing IP65
Operating temperature -30°C – + 80°C
 Mechanical service life 3 x 10 ∧ 6 switching
 Switching frequency Max. 100 / min
Clutch type 1NC / 1NO
 Interface screw mounting
 Cable glad M16x1.5
