Description
Grooved endcaps with threaded BSPT eccentric holes provide an economical and efficient method of reducing grooved piping systems.
Sizes
Available sizes are DN50-DN25 to DN200-DN50.
Operating pressure
21 bar. Note! Nordic Flow thin wall pipes with the maximum permissible pressure class PN16.
Material Specification
Body: Cast iron ASTM A536 65-45-12
Finish: Red paint RAL 3000 or galvanized (Dacromet)

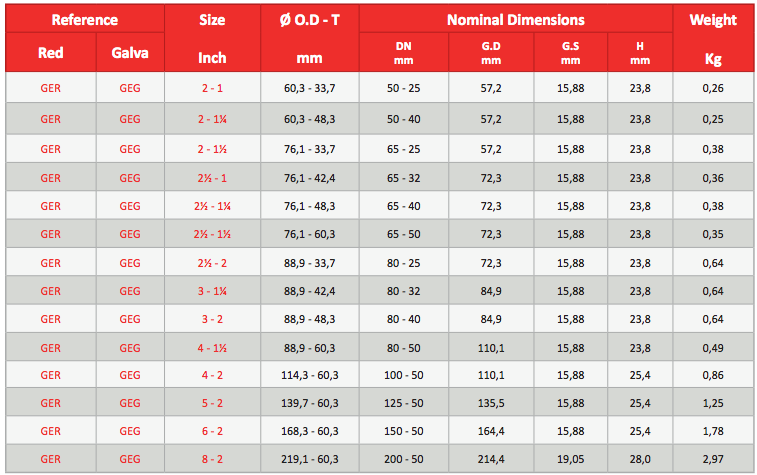

Dimensions:
| Reference |
Size Inch |
∅O.D-T mm |
Nominal Dimensions |
Weight Kg |
||||
| Red | Galva | DN mm |
G.D mm |
G.S mm |
H mm |
|||
| GER | GEG | 2-1 | 60.3-33.7 | 50-25 | 57.2 | 15.88 | 23.8 | 0.26 |
| GER | GEG | 2-1¼ | 60.3-48.3 | 50-40 | 57.2 | 15.88 | 23.8 | 0.25 |
| GER | GEG | 2-1½ | 76.1-33.7 | 65-25 | 57.2 | 15.88 | 23.8 | 0.38 |
| GER | GEG | 2½-1 | 76.1-42.4 | 65-32 | 72.3 | 15.88 | 23.8 | 0.36 |
| GER | GEG | 2½-1¼ | 76.1-48.3 | 65-40 | 72.3 | 15.88 | 23.8 | 0.38 |
| GER | GEG | 2½-1½ | 76.1-60.3 | 65-50 | 72.3 | 15.88 | 23.8 | 0.35 |
| GER | GEG | 2½-2 | 88.9-33.7 | 80-25 | 72.3 | 15.88 | 23.8 | 0.64 |
| GER | GEG | 3-1¼ | 88.9-42.4 | 80-32 | 84.9 | 15.88 | 23.8 | 0.64 |
| GER | GEG | 3-2 | 88.9-48.3 | 80-40 | 84.9 | 15.88 | 23.8 | 0.64 |
| GER | GEG | 4-1½ | 88.9-60.3 | 80-50 | 110.1 | 15.88 | 23.8 | 0.49 |
| GER | GEG | 4-2 | 114.3-60.3 | 100-50 | 110.1 | 15.88 | 25.4 | 0.86 |
| GER | GEG | 5-2 | 139.7-60.3 | 125-50 | 135.5 | 15.88 | 25.4 | 1.25 |
| GER | GEG | 6-2 | 168.3-60.3 | 150-50 | 164.4 | 15.88 | 25.4 | 1.78 |
| GER | GEG | 8-2 | 219.1-60.3 | 200-50 | 214.4 | 19.05 | 28.0 | 2.97 |
